Fully Production Line Free Pallet Hollow Block Making Machine YXMT12-25
This fully automatic production line uses free pallets for flexible, high-volume hollow block manufacturing. The YXMT12-25 integrates batching, mixing, conveying, and block forming with hydraulic vibration for extreme density and strength. Quick mold change enables production of various block sizes, including paving and curb stones. No steel pallets are required, reducing investment and maintenance. Central PLC control ensures stable operation, low labor demand, and high output for commercial projects.
แบบอย่าง :
Yixin Machinery YXMT12-25ขนาดเครื่องจักร :
4480*3680*3090（MM）ขนาดพาเลท :
free palletเวลาวงจร :
18-25（s）แรงสั่นสะเทือน :
55-105（KN）ความดันเวเต็ด :
21（mpa）พลัง :
70（KW）Fully Production Line Free Pallet Hollow Block Making Machine YXMT12-25
Reference video of YXMT12-25 hollow block making machine
The YXMT12-25 fully production line free pallet hollow block making machine integrates German hydraulic technology with a multi-hydraulic driving system. This advanced design delivers significantly stronger vibration, ensuring superior material compaction. The forming cycle is effectively shortened, boosting overall production efficiency. Meanwhile, the enhanced vibration and hydraulic force produce blocks with exceptional strength and uniform density. Ideal for high-capacity projects, the machine operates without pallets, reducing costs and handling time.
Production Data
| Block Type | Specification（mm） | Qty/Palllet | Qty/Hour | Qty/Hours |
| Hollow Block | 390*190*190 | 12 | 1728 | 13824-19200 |
| Solid Block | 240*115*53 | 68-72 | 9729 | 78336-108800 |
| Holland Block | 240*100*60 | 45 | 7920 | 51840-72000 |
| Zigzag Block | 240*115*90 | 32 | 4600 | 368000-51200 |
Product Detail
Block Display

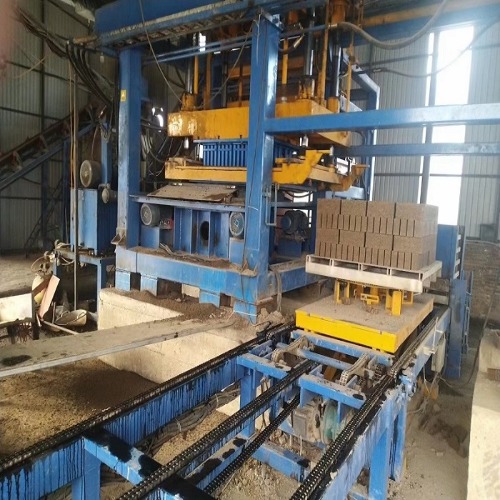

The YXMT12-25 fully production line free pallet hollow block making machine features a proprietary no-seam connection between its control system, hydraulic system, and mechanical structure. This integration achieves a true mechanics-electronics-hydraulics composite technique. It enables synchronized, high-efficiency operation, reducing manual intervention and cycle time. The intelligent control ensures consistent block quality with high density and precise dimensions. Ideal for automated mass production, it lowers energy consumption and maintenance needs, delivering a seamless, reliable, and highly productive manufacturing solution.
The autognostic and guiding functions of the YXMT12-25 fully production line free pallet hollow block making machine continuously monitor the operational status of the equipment. When a fault is detected, the system immediately stops the machine and triggers an audible or visual alarm. In addition, it provides a clear solution proposal for the detected issue, helping operators to quickly understand and resolve the problem. This intelligent feature minimizes downtime, reduces maintenance complexity, and improves overall production efficiency and reliability in block manufacturing.
| FAQ |
| 1.What exactly does "free pallet" mean in this machine, and how does that impact my production costs?
"Free pallet" means the machine operates without the need for wooden or steel pallets to carry the blocks during the curing process. The blocks are ejected directly onto a curing rack or floor. This eliminates the significant recurring cost of purchasing, maintaining, and replacing pallets, which in high-volume projects can save you tens of thousands of dollars annually. It also reduces labor costs associated with pallet handling and stacking. |
| 2.We work on large construction projects with variable raw material quality. How stable is this machine with different fly ash and aggregate ratios?
The YXMT12-25 is engineered with a high-pressure hydraulic system and a servo-controlled vibration system. This combination allows it to adapt to a wide range of mix designs, from high fly ash content to crushed stone aggregates. The vibration frequency and pressing force are adjustable via the PLC control system, ensuring consistent block density and strength even if your raw material quality varies slightly, as long as you maintain a consistent water-to-cement ratio. |
| 3.What kind of warranty and after-sales support do you provide for a project-based buyer like us?
We offer a standard 24-month warranty on the main structure and hydraulic system, and a 12-month warranty on electrical components and the PLC. More importantly for project timelines, we provide on-site commissioning by our engineers and a 48-hour response guarantee for any critical service requests. |
| 4.What are the dimensions and total weight for a single set?
That is a very important question. For the standard YXMT12-25, the dimensions are approximately 4880 mm in length, 3860 mm in width, and 3090 mm in height. The gross weight for the main machine is around 12.5 metric tons. This allows it to be shipped in a standard 40-foot high-cube container . |
| 5. Can the machine’s layout or dimensions be modified?
Yes, we provide layout customization. If you have space limitations, we can redesign the arrangement of the conveyor system, pallet feeder, and stacker to fit your facility. We will work with your facility layout plan to ensure smooth integration without sacrificing automation efficiency. |
